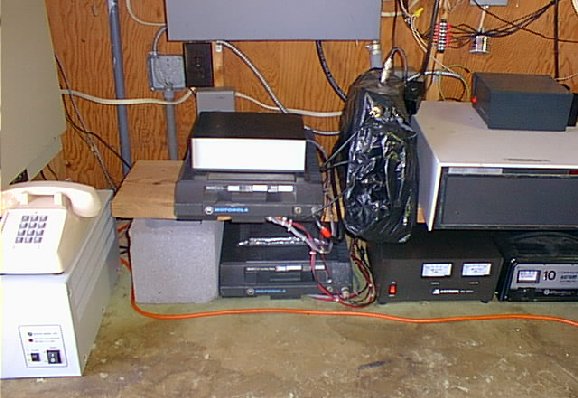

Clickable 444.375 Repeater/JASPER Digipeater Image

Click any Item in the image to get it's description.


TNC

The JASPER Digipeater TNC is a Kantronics® KPC-9612 dual port TNC. It supports both 1200 and 9600 Baud as well as digital paging.

Back to Image

Back to Repeater Page

Back to Digipeater Page


Power Supply

The power supply is an Astron RS-35M, 13.8 [email protected] Amps. The power supply powers both the UHF repeater and the digipeater.

Back to Image

Back to Repeater Page

Back to Digipeater Page


UHF Transceiver

The transceiver is a standard Motorola Micor® which has been modified for repeater use. The repeater modification allows the transceiver to transmit and receive simultaneously. A spare transceiver is available to allow quick replacement in the event of a failure.

Back to Image

Back to Repeater Page

Back to Digipeater Page


JASPER Digipeater Transceiver

The transceiver is a standard Motorola Micor® which has been modified for 1200/9600 Baud packet use. The transceiver does not have a receive pre-amp installed, however, the receiver sensitivity is still less than .25 [email protected] quieting. A spare transceiver is available to allow quick replacement in the event of a failure.

Back to Image

Back to Repeater Page

Back to Digipeater Page


Controller

The repeater controller is an ACC RC-85 microprocessor controller housed in an aluminum case. The single board provides all of the repeater functions, timers, phone patch, etc. All of the inputs and outputs are connected through a single 25 pin "D" connector to allow easy removal and replacement of the controller with a spare unit.

Back to Image

Back to Repeater Page

Back to Digipeater Page


Duplexer

The duplexer cannot be seen well in this image since it is covered with a large trash bag to keep out dust and debris. The duplexer is a Telewave, 4 cavity model. It basically provides isolation between the receiver and the transmitter and combines the two into a single antenna. By the way, the antenna (not shown) is a Hustler G-6 2/70 dual band and is shared between the UHF repeater and the digipeater. The antenna is fed with 7/8" Andrew Heliax® feedline.

Back to Image

Back to Repeater Page

Back to Digipeater Page


Commercial Equipment

This is commercial equipment that is also located at the repeater site

Back to Image

Back to Repeater Page

Back to Digipeater Page


Shelf

There's certainly nothing fancy here! The shelf that the equipment is sitting on is constructed from a scrap piece of rough lumber sitting on two concrete blocks.

Back to Image

Back to Repeater Page

Back to Digipeater Page
